Under Water Lamp

Modern and fashionable design makes the lights an artwork. Perfectly combined with environment. The light is mainly made of high-pressed die-casting materials with anti-anging and antistatic spray surface treatment, resulting in eminent self-clean and anticorrosive performance. Stell glass cover is used, making the light more impcat-resistant. The light can allocate white light or single RGB, casuing pure and gorgeous lighting effects, more changeable. Lamps and lanterns should according to actual working voltage, the application of the selected for: DC12V, DC24V.

Installation Instruction for use

♦ According to the scene layout of the position of the light, and fixed
♦ Connect the DMX512 signal line and power line. This product with the international standard DMX512 signal lines, bus for signal input, the female connector is a signal output.
♦ Confirm the installation without error, withour electrical short circuit.
♦ With reference to the operating instructions, electric land address to the controller corresponding to the channel.
♦ According to DMX512 principle, the connected lamp exceeds 32, with corresponding repeater
♦ If the installation problems, please consult the companies technical stuff.

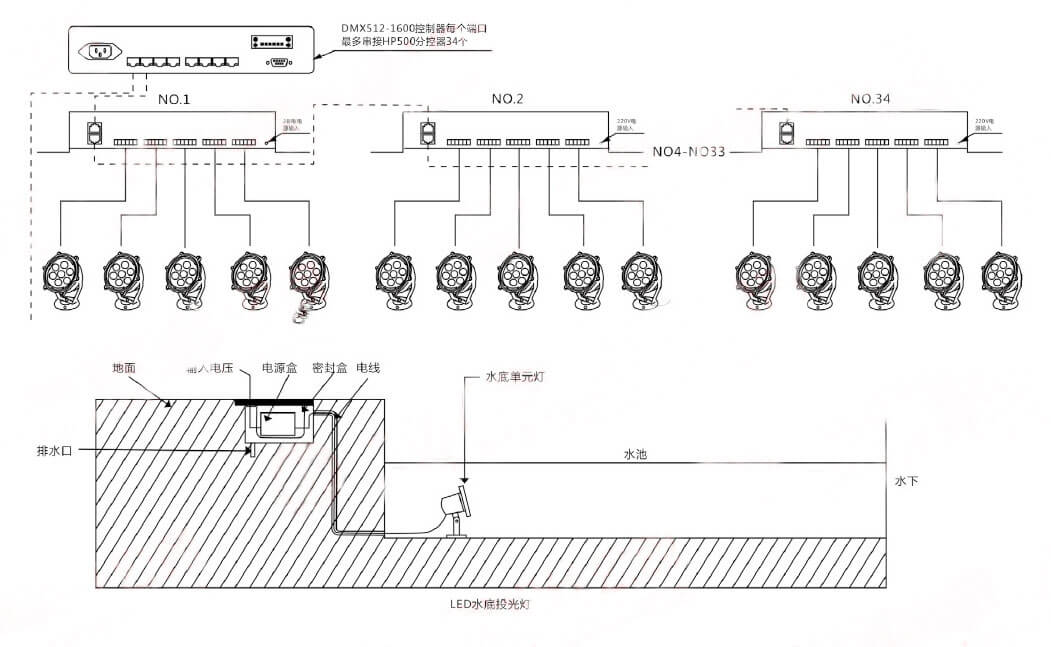

Installation Diagram

Fig1. - Installation Diagram for Under Water Lamp

MM - 13101

Power - 9W

LED underwater light, also called LED underwater light, it is a kind of underwater light, simple means is installed in the bottom of the water. Small and delicate appearance. Appearance is same with some underground lamp, more than just a installation chassis, chassis are screwed, Because LED underwater light is used in underwater below, need to absorb a certain amount of pressure. So it is to use stainless steel material, 8-10 mm toughened glass, high quality waterproof connector, silicone rubber seal, Arc angels refraction tempered glass, waterproof, dustproof, prevent leakage and corrosion.

Working Voltage AC12-24V

Lamp Size - φ160xH86mm

Color temperature - 2700-7000K

LED Color - R/Y/B/G/W/WW/RGB

MM - 13102

Power - 12W

LED underwater light, also called LED underwater light, it is a kind of underwater light, simple means is installed in the bottom of the water. Small and delicate appearance. Appearance is same with some underground lamp, more than just a installation chassis, chassis are screwed, Because LED underwater light is used in underwater below, need to absorb a certain amount of pressure. So it is to use stainless steel material, 8-10 mm toughened glass, high quality waterproof connector, silicone rubber seal, Arc angels refraction tempered glass, waterproof, dustproof, prevent leakage and corrosion.

Working Voltage AC12-24V

Lamp Size - φ180xH86mm

Color temperature - 2700-7000K

LED Color - R/Y/B/G/W/WW/RGB

MM - 13103

Power - 18W

LED underwater light, also called LED underwater light, it is a kind of underwater light, simple means is installed in the bottom of the water. Small and delicate appearance. Appearance is same with some underground lamp, more than just a installation chassis, chassis are screwed, Because LED underwater light is used in underwater below, need to absorb a certain amount of pressure. So it is to use stainless steel material, 8-10 mm toughened glass, high quality waterproof connector, silicone rubber seal, Arc angels refraction tempered glass, waterproof, dustproof, prevent leakage and corrosion.

Working Voltage AC12-24V

Lamp Size - φ180xH86mm

Color temperature - 2700-7000K

LED Color - R/Y/B/G/W/WW/RGB

MM - 13201

Power - 3W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ90xH95mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13202

Power - 5W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ120xH100mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13203

Power - 6W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ145xH110mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13204

Power - 7W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ145xH110mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13205

Power - 9W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ145xH110mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13206

Power - 12W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ150xH110mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13207

Power - 15W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ190xH230mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13301

Power - 1W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ82xH140mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13302

Power - 3W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ82xH140mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13303

Power - 5W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ120xH165mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13304

Power - 6W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ120xH165mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13305

Power - 7W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ160xH180mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13306

Power - 9W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ160xH220mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13307

Power - 12W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ160xH220mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13401

Power - 3W

High power LED underwater lamp adopts imported chips, high brightness, low power consumption, low heat, long life. All stainles steel shell, toughened safety glass. Integrated light fixture and electrical appliance, modelling is light and beautiful, easy for installation.

Working Voltage AC12-24V

Lamp Size - φ95xH130mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13402

Power - 5W

High power LED underwater lamp adopts imported chips, high brightness, low power consumption, low heat, long life. All stainles steel shell, toughened safety glass. Integrated light fixture and electrical appliance, modelling is light and beautiful, easy for installation.

Working Voltage AC12-24V

Lamp Size - φ95xH130mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13403

Power - 18W

High power LED underwater lamp adopts imported chips, high brightness, low power consumption, low heat, long life. All stainles steel shell, toughened safety glass. Integrated light fixture and electrical appliance, modelling is light and beautiful, easy for installation.

Working Voltage AC12-24V

Lamp Size - φ210mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13404

Power - 36W

High power LED underwater lamp adopts imported chips, high brightness, low power consumption, low heat, long life. All stainles steel shell, toughened safety glass. Integrated light fixture and electrical appliance, modelling is light and beautiful, easy for installation.

Working Voltage AC12-24V

Lamp Size - φ260xH320mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13501

Power - 6W

The product widely applies in the large swimming pool, artificial waterfalls, DAMS, aquarium and park fountain pool, apuare, ect.

Working Voltage AC12-24V

Lamp Size - φ155xH160mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13502

Power - 7W

The product widely applies in the large swimming pool, artificial waterfalls, DAMS, aquarium and park fountain pool, apuare, ect.

Working Voltage AC12-24V

Lamp Size - φ155xH160mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13503

Power - 9W

The product widely applies in the large swimming pool, artificial waterfalls, DAMS, aquarium and park fountain pool, apuare, ect.

Working Voltage AC12-24V

Lamp Size - φ160xH220mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13504

Power - 12W

The product widely applies in the large swimming pool, artificial waterfalls, DAMS, aquarium and park fountain pool, apuare, ect.

Working Voltage AC12-24V

Lamp Size - φ160xH220mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13505

Power - 18W

The product widely applies in the large swimming pool, artificial waterfalls, DAMS, aquarium and park fountain pool, apuare, ect.

Working Voltage AC12-24V

Lamp Size - φ175xH135mm

Color temperature - 2700-7000K.

LED Color - R/Y/B/G/W/WW/RGB

MM - 13601

Power - 6W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ150xH175mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13602

Power - 9W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ150xH280mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13603

Power - 3W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ120xH150mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13604

Power - 9W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ155mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13605

Power - 12W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ178xH190mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13606

Power - 18W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ240xW100xH220mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13607

Power - 18W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ230xH200mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13608

Power - 18W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ210xW90xH220mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13701

Power - 3W

Color temperature - 2700-7000K.

Working Voltage AC85-265V

Lamp Size - φ140xH140mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13702

Power - 1-3W

Color temperature - 2700-7000K.

Working Voltage AC85-265V

Lamp Size - φ160xH100mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13703

Power - 3W

Color temperature - 2700-7000K.

Working Voltage AC85-265V

Lamp Size - φ140xH140mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13704

Power - 5W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ165xH155mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13705

Power - 3W

Color temperature - 2700-7000K.

Working Voltage AC85-265V

Lamp Size - φ82xH140mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13706

Power - 7W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ160xW100xH155mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13707

Power - 6W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ200xH230mm

LED Color - R/Y/B/G/W/WW/RGB

MM - 13708

Power - 9W

Color temperature - 2700-7000K.

Working Voltage AC12-24V

Lamp Size - φ160xW100xH155mm

LED Color - R/Y/B/G/W/WW/RGB
